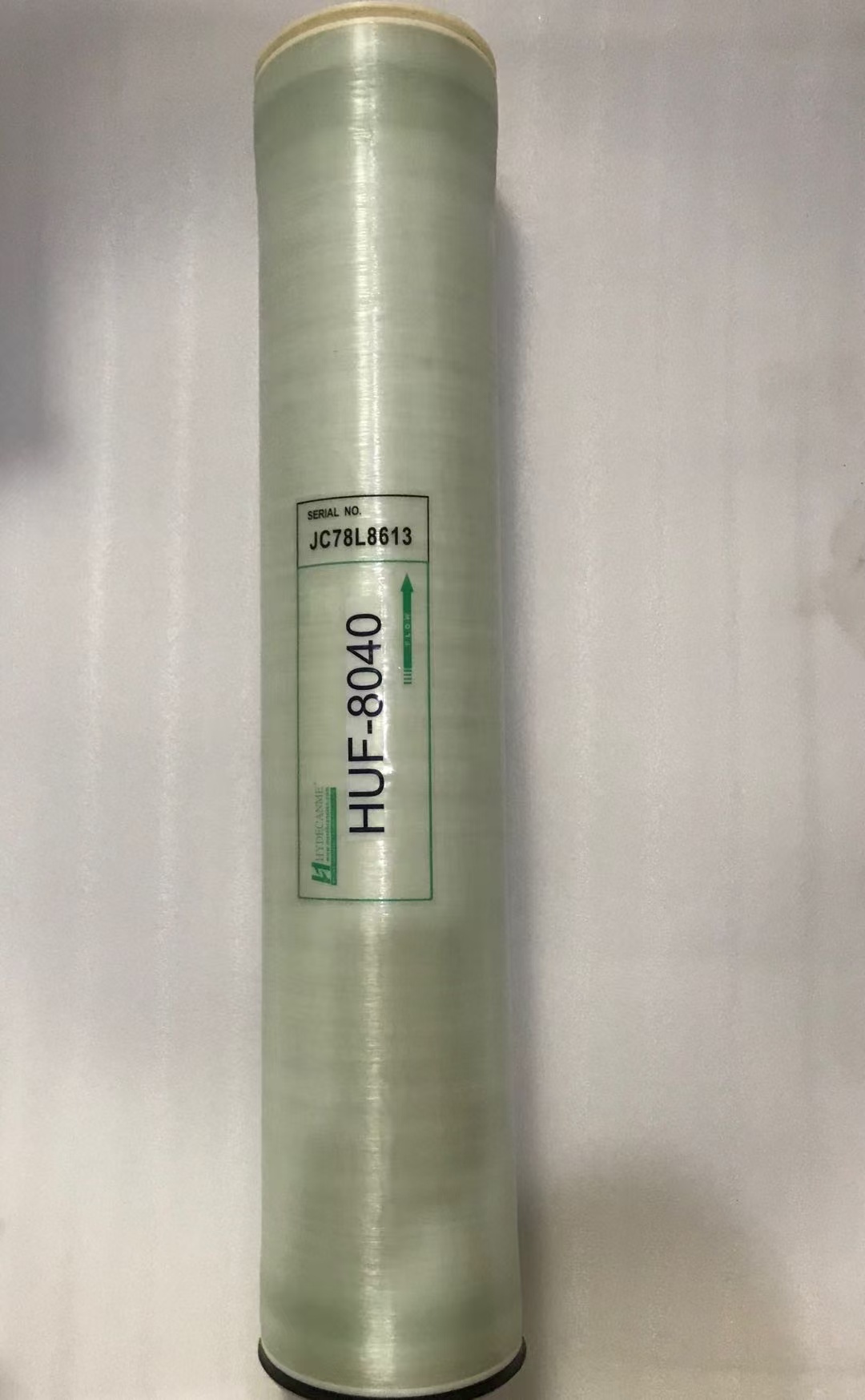

8040 Roll Type Ultrafiltration Membrane
1. High quality membrane material, excellent hydrophilicity and chemical stability.
2. High water yield, low MWCO.
3. High stacking density of membrane elements, compact structure between modules, belongs to a class of flat membrane with relatively simple application technology, and the cost is relatively low.
4. Can be applied to enterprises with large treatment capacity.
The membrane element for electrophoretic coating is the core of the electrophoretic ultrafiltration system.
Main function
1.Recovering the electrophoretic paint rinsed off the surface of workpieces, and reusing the recovered electrophoretic paint, which can make the enterprise save 30% of the purchase cost of spot painting, and at the same time, it can avoid the environmental pollution due to the discharge of wastewater with paint.
2. The produced ultrafiltration water can be used as the rinsing water for the workpieces in the electrophoresis tank.
3. By properly discharging the ultrafiltration solution, it can remove various ions brought into the electrophoresis paint tank during the production process and stabilize the electrophoresis working fluid.
Application
Electrophoretic paint coating system for automobile manufacturing home appliances and other industries.
Parameters
HUF-4040 | |
Product description membrane separation layer | Modified polyethersulfone |
Support layer | Polyesters |
Vascular | UPVC |
Baffle | ABS |
Elastomer seals | Ethylene propylene rubber |
Framework | Rolled fiberglass appearance |
Effective membrane area | 8.4㎡ |
Maximum inlet pressure | 85psi(4.4 bar) |
Recommended inlet pressure | 44-60psi(3.0-4.1 bar) |
Recommended outlet pressure | 15-40psi(1.0-2.7 bar) |
Maximum operating temperature | 122F (50°C) |
PH range (continuous operation) | 2.0-10.0 |
PH range (short cleaning) | 2.0-11.5@50℃，30min |
Feed volume | 20-24gpm(76-91Ipm) |
Yield | 0.7-1.0gpm (2.6-3.8lpm) |
HUF-4040 | |
Product description membrane separation layer | Modified polyethersulfone |
Support layer | Polyesters |
Vascular | UPVC |
Baffle | ABS |
Elastomer seals | Ethylene propylene rubber |
Framework | Rolled fiberglass appearance |
Effective membrane area | 34m |
Maximum inlet pressure | 65psi (4.4 bar) |
Minimum outlet pressure | 10psi (0.7 bar) |
Recommended inlet pressure | 44-60psi(3.0-4.1 bar) |
Recommended outlet pressure | 15-40psi(1.0-2.7 bar) |
Maximum operating temperature | 122F (50°C) |
PH range (continuous operation) | 2.0-10.0 |
PH range (short cleaning) | 2.0-11.5@50℃，30min |
Feed volume | 60-80gpm (246-303Ipm) |
Yield | 2.8-4.5gpm (10.6-17Ipm) |
