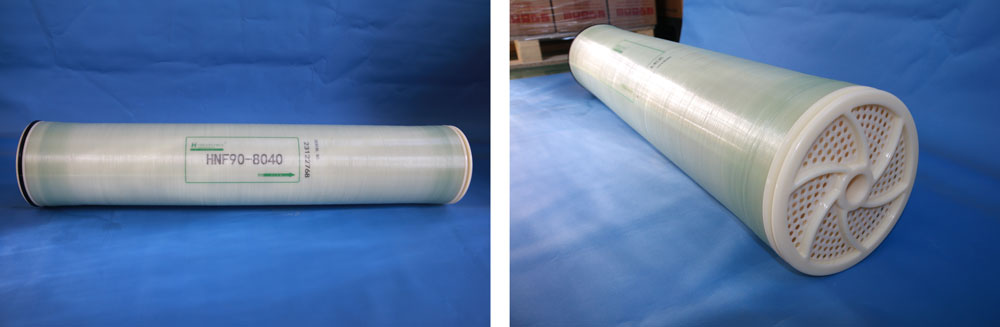

8040 Desalination 90% Nanofiltration Membrane

1.Mild process: Nanofiltration (NF) operates at room temperature, without phase changes or reactions, ideal for heat-sensitive substances.

2.Better quality and yield: NF membranes remove salts and reduce ash, enhancing purity and yield compared to solvent desalination.

3.High efficiency: NF achieves high yield with minimal loss.

4.Resource recycling: NF recovers acids, alkalis, and alcohols for reuse.

5.Compact & low energy: Equipment is space-saving and energy-efficient.

6.Easy operation: NF membranes are simple to operate, automated, stable, and low-maintenance.

7.Staggered-flow filtration: Prevents clogging, maintains flux, and reduces contamination for long-term efficiency.

8.Stable filtrate: Staggered-flow ensures consistent filtrate quality with surface separation.

9.Low pressure, high desalination: Operates at low pressure with high desalination and excellent water quality.

10.Health standards: Uses hygienic stainless steel and enclosed pipelines, meeting GMP/FDA standards.


Contact Now E-mail Telephone WhatsApp
Product Details

The nanofiltration membrane launched by our company includes nearly 10 varieties of three series with desalination rates of 40%, 70% and 90% respectively. nanofiltration membrane is between reverse osmosis and ultrafiltration, the pore size is more than 1nm, generally 1~2nm, mainly removes solute particles of about one nanometer, and the relative molecular mass of the retention is 200~1000.The surface separation layer of the nanofiltration membrane is composed of polyelectrolyte, thus it has a certain rate of desalination for the inorganic salts. Generally, the removal rate of nanofiltration membrane for divalent ions is more than 90%, and the removal rate for monovalent ions is 10~80%.

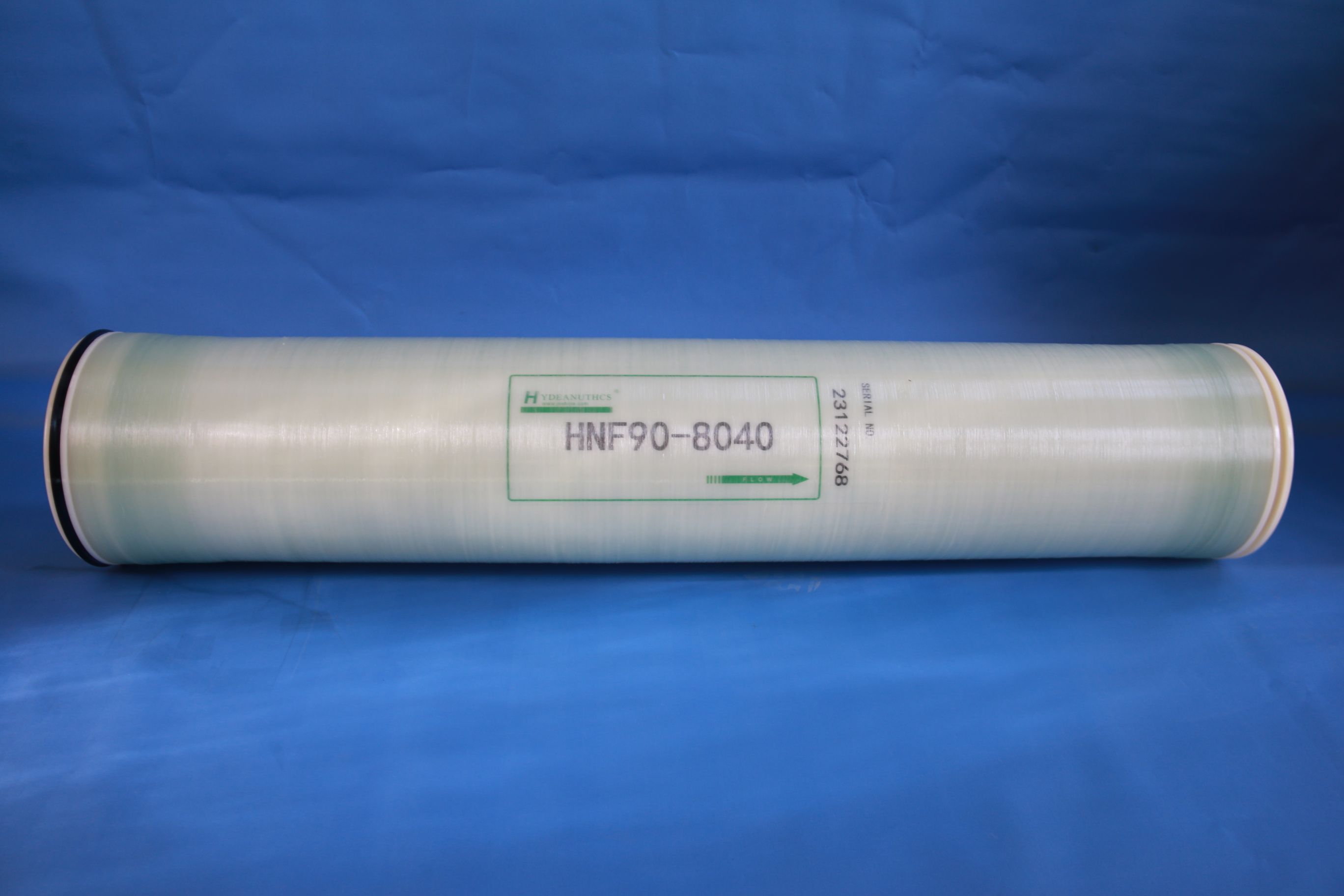

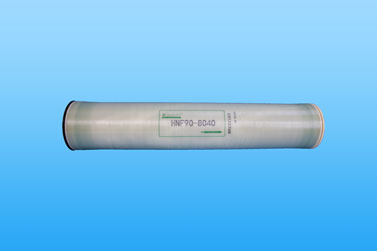

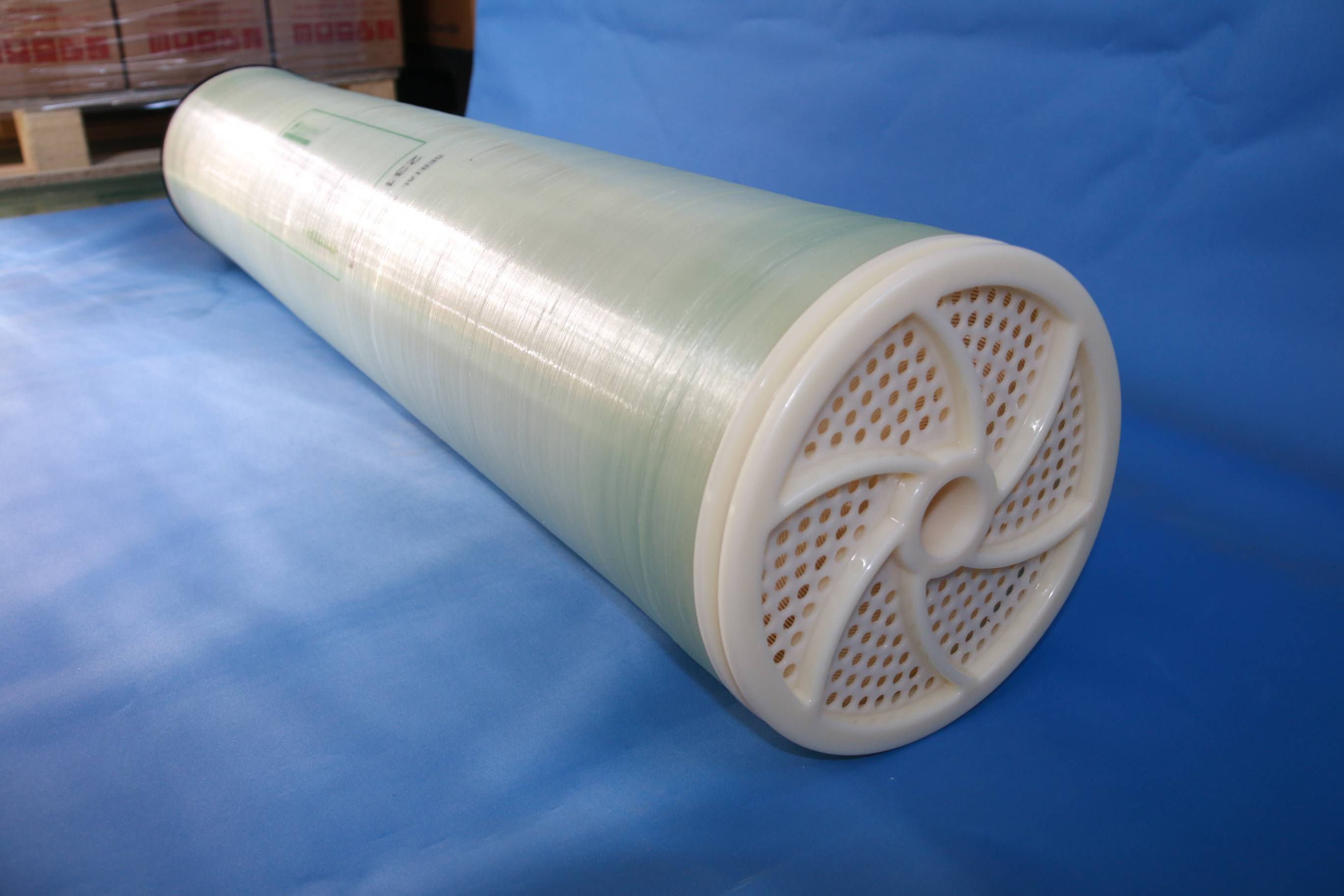

8040 Desalination 90% Nanofiltration Membrane



Nanofiltration membrane is widely used in softening, removing natural organic matter, removing toxins in water, removing pesticides in water, removing trihalomethanes and haloacetic acid, removing volatile organic compounds, removing synthetic detergents, removing turbidity, removing chromaticity, and purifying macromolecular substances.


Deep purification of tap water to provide healthy, high-quality drinking water; pipeline water supply in residential areas; deep treatment of local high fluoride, high hardness, high metal ion content of groundwater to improve the local water use; nanofiltration membranes are used in seawater desalination, desalination of brackish water treatment; used in the purification and concentration of antibiotics; peptide purification and concentration; papermaking wastewater treatment; organic wastewater treatment; heavy metals Wastewater treatment; dye desalination; oil-water separation; water and industrial wastewater reuse.


Parameters

HNF-4040 Series Basic Performance Specification

Model number

HNF40-4040

HNF70-4040

HNF90-4040

Desalination rate %

NaCl

35~45

65~75

85~95

MgSO4

>90

>95

>95

Water production GPD (m3/d)

2500 (9.46)

2300 (8.7)

1900 (7.2)

Effective membrane area ft2 (m2)

75 (7.0)

Water recovery rate of single membrane element

15%

Test pressure

100 psi(0.7Mpa)

Test temperature

25℃

Test concentration

500ppmNaCl solution;500ppmMgSO4 solution

Test solution PH

6.5~8.5

Cleaning PH range

3~10

Maximum operating pressure

600psi(4.14Mpa)

Maximum inlet water flow rate GPM(m3/h)

16 (3.6)

Inlet water temperature

5~45℃

Maximum influent SDI

5

Free chlorine concentration of influent water

0.1ppm

Maximum allowable pressure drop of single membrane element

20psi(0.14Mpa)



HNF-8040 Series Basic Performance Specifications

Model number

HNF40-8040

HNF70-8040

HNF90-8040

Desalination rate %

NaCl

35~45

65~75

85~95

MgSO4

>90

>95

>95

Water production GPD (m3/d)

10000(38)

9500(36)

8500 (32)

Effective membrane area ft2 (m2)

380 (35)

Water recovery rate of single membrane element

15%

Test pressure

100 psi(0.7Mpa)

Test temperature

25℃

Test concentration

500ppmNaCl solution;500ppmMgSO4 solution

Test Solution PH

6.5~8.5

Cleaning PH range

3~10

Maximum operating pressure

600(4.14Mpa)

Maximum inlet water flow rate GPM(m3/h)

16 (3.6)

Inlet water temperature

5~45℃

Maximum influent SDI

≤5

Free chlorine concentration of influent water

<0.1ppm

Maximum allowable pressure drop of single membrane element

20psi(0.14Mpa)
